MPO Female Type Fiber Loopback Module For Testing Transmit And Receiving Functions

12 Fibers Fiber Loopback Module MPO Female Type 1 OM4 50/125 Multimode Type 1,Provides a looped signal to test the transmit and receiving functions.

MPO Loopback modules provides a looped signal to test the transmit and receiving functions.

It used widely within testing environment especially within parallel optics 40 and 100G networks.

12F MPO Fiber Loopback Module allows verification and testing of transceivers featuring MPO interface – 40GBASE-SR4 QSFP+ or 100GBASE-SR4 devices.

Loopbacks are built to link Transceivers (TX) and Receivers (RX) positions of MPO transceivers interfaces. MPO loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO trunks/patch leads.

Features

• SM 9/125, MM 50/125, MM 62.5/12512 or 24 Fiber Ferrule
• Female and Male MPO/MPO option of Connectors
• Polarity Variants selection40G QSFP+ and 100G CXP/CFP transceivers
• Factory Terminated and Tested MPO Interface
• MPO components feature superior optical and mechanical properties

Specifications

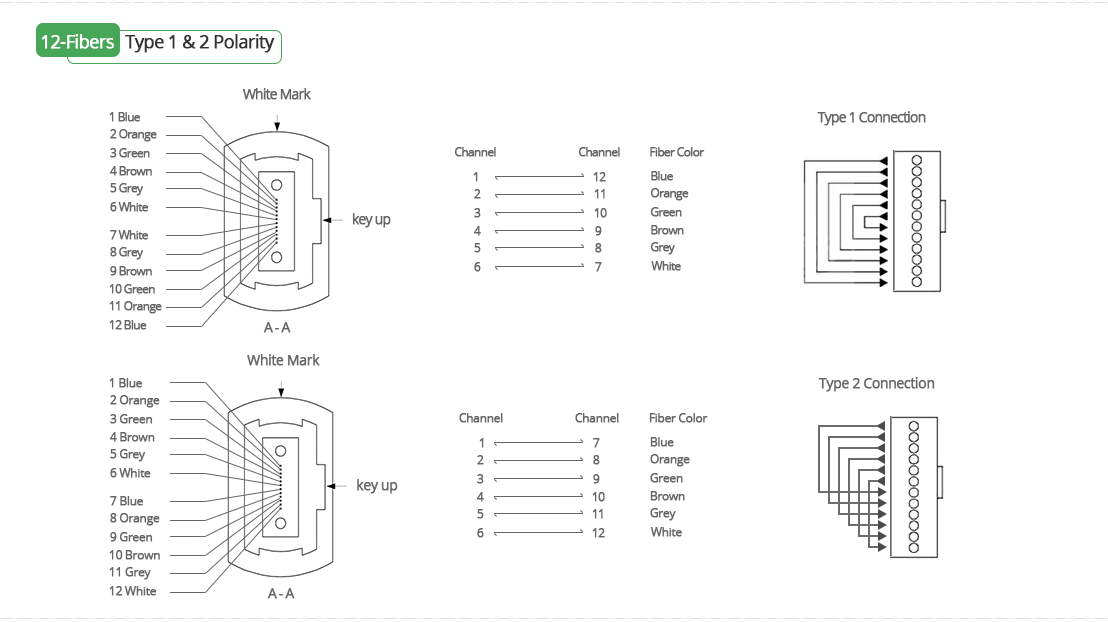

Polarity (Channel Alignment)

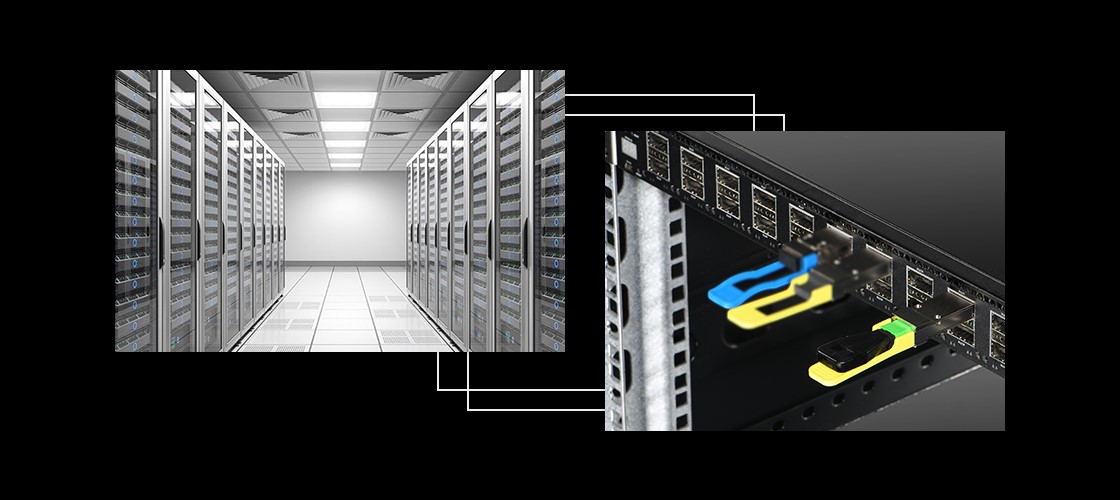

Application in Data Center

Collocated with 40G or 100G MPO/MPO interface transceivers

Loopback Module can be used for testing the transmission capability and receiver sensitivity of fiber optic network equipment.
