High quality MPO - MPO trunk cable with SM OM3 OM4 OM5 of 12F , 24F , 48F , 72F , 96F , 144F cable with OEM service
MPO-MPO Patch cable/trunk cable is terminated with MPO con- nector on both ends. MPO Patch cable/trunk cables connect MPO modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or uggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross- connect side of the patch panel.
The 12F MPO-MPO Patch cable/trunk cable is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center
The 24F MPO-MPO Patch cable/trunk cable is designed fo 100GBASE-SR10 CXP/CFP Interconnect Solution,100GBASE-LR4 and high-density data center.
Products Details
| Connector | Reference | Housing Details |

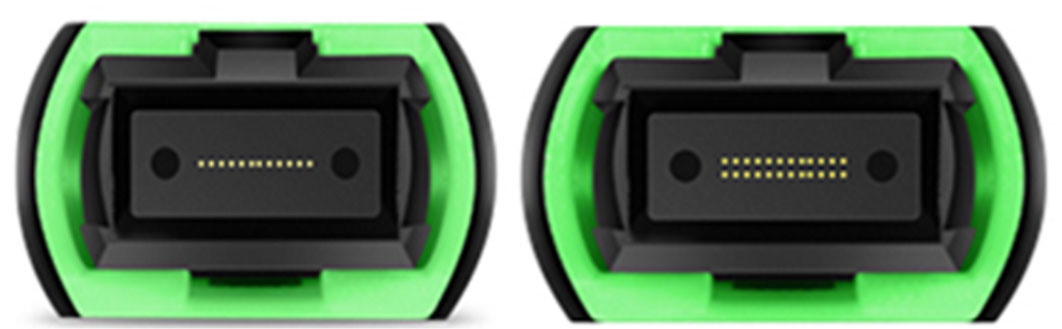

| MPO Singlemode | IEC 61754-7 | SM APC: Green connectors+black boot (Standard Loss MPO) SM APC: Yellow connectors+black boot (Super low loss MPO) |
| MPO Multimode | IEC 61754-7 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
Products Materials-Cable
| Fiber Count | OD(mm) | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load(N/100mm) | Minimum Bending Radius(MM) |
| 12/24 | 3.0±0.15 | Short-term: 180； Long-term: 90 | Short-term: 500； Long-term: 150 | Static:10D Dynamic:20D |

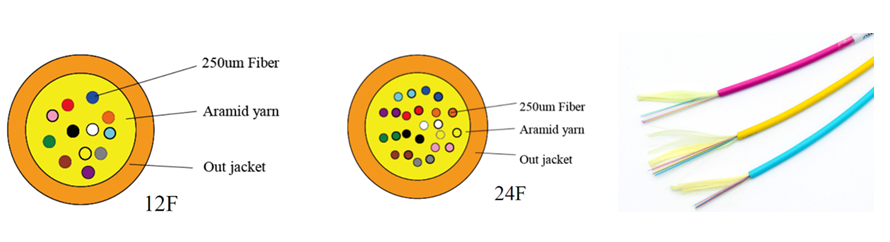

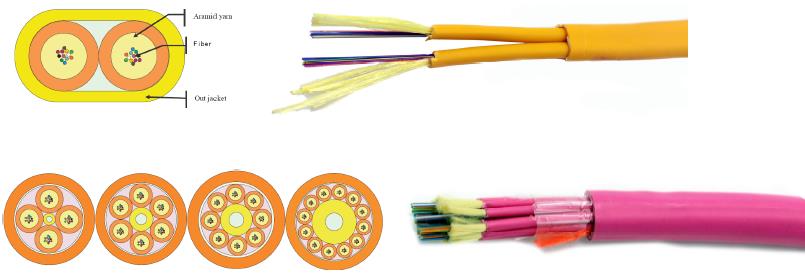

The cable for 24F-144F is a kind of 2.0mm/3.0mm multi-tubes Micro-fiber cable. Each Tube’s hold 12F. See Below.
| Fiber number | Flat 24 | 36 & 48 | 72F | 96F | 144F |
| Subunit diameter (mm) | 2.9±0.1 | 2.9±0.1 | 2.9±0.1 | 2.9±0.1 | 2.9±0.1 |
| Cable diameter(mm) | (4.2±0.3)x(7.6±0.4) | 9.0±0.3 | 11.2±0.3 | 13.5±0.3 | 17.5±0.3 |
| Cable weight(kg/km) | (LSZH 52)/ (PVC 44) | (LSZH 93) /(PVC 86) | (LSZH106)/ (PVC 96) | (LSZH146)/ (PVC 135) | (LSZH260)/ (PVC 224) |
| Max.loading(IEC794-1) Installation/Operation | 200/80 | 1000N/300N |
| Temperature rating Op- eration&Storage | -20°C ~70°C |
Optical Specifications
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| Insertion loss (MPO)(IEC 61300-3-34) | Standard loss:≤0.75dB(max), ≤0.50dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) | Standard loss:≤0.6dB(max), ≤0.50(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB (Typical) |
| Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB |
| Durability | <0.3dBtypical change, 200 matings |
| Interchangeability | ≤0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -40 to + 85°C |
MPO End-Face 3D Interference
| Item (IEC-61300-3-30) | Minimum | Maximum |
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | |
| ROC-Y(ABS) | 50mm | |
| Angle | Angle-X | -0.2° | -0.2° |
| Angle-Y | APC | 7.85° | 8.15° |
| PC | -0.2° | -0.2° |
| Fiber height (nm) | 1000nm | 3500nm |
| Max.DH.All Fiber: | -300nm | 300nm |
| DH.Adj: | -300nm | 300nm |
| DH.Ave Fiber: | -300nm | 300nm |
| Core Dip: | SM | N/A | N/A |
| MM | -200nm | 300nm |

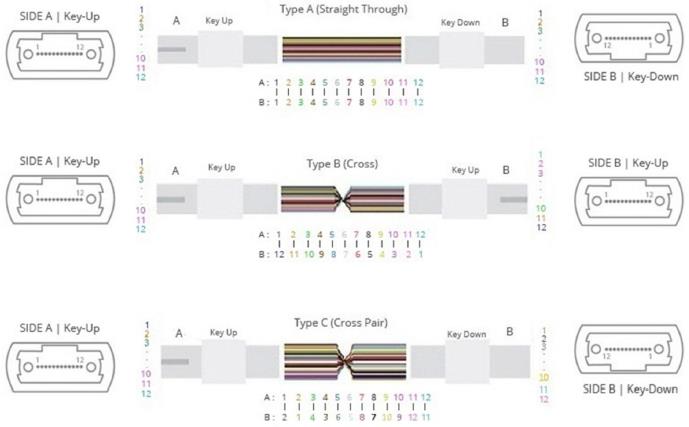

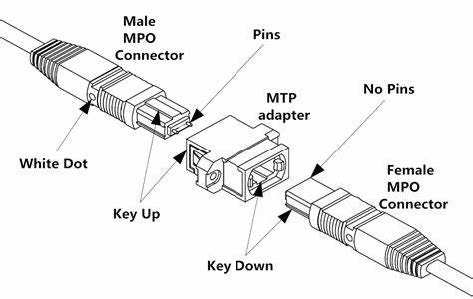

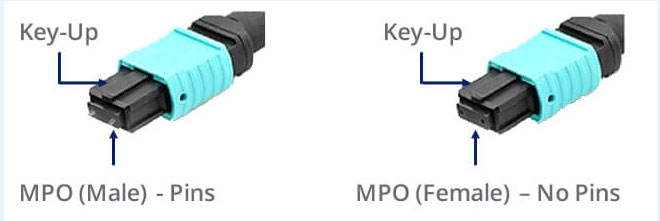

Three Connection Methods Help Keep the Right MTP/MPO Polarity
Because 24F-144F MPO/MTP trunk cable’s unit connector is 12F MPO/MTP, So it have same polarity as single 12F
MPO/MTP trunk cable.
Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications

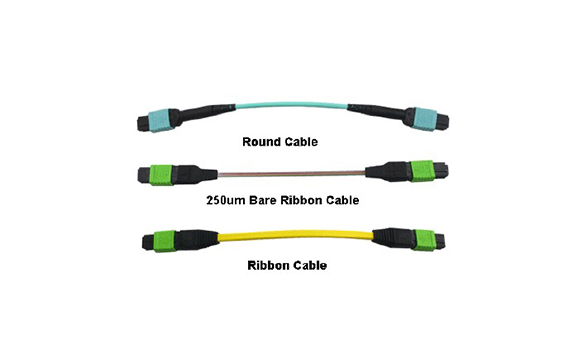

Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
Application:
All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Patch cable/trunk cable is a kind of high density
cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
Packaging
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
